| Parameter |
Specification Details |
| Server Model |
Dell Poweredge R760 Server |
| Processor |
Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel® QuickAssist Technology |
| Memory |
- 32 DDR5 DIMM slots, supports RDIMM 8 TB max, speeds up to 4800 MT/s
- Supports registered ECC DDR5 DIMMs only
|
| Storage controllers |
- Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
- Internal Boot: Boot Optimized Storage Subsystem(BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
- External HBA (non-RAID): HBA355e
- Software RAID: S160
|
| Drive Bays |
Front bays:
- Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
- Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
- Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
- Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
Rear bays:
- Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
- Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
|
| Power supplies |
- 2800 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant
- 2400 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
- 1800W Titanium 200-240 VAC or 240 HVDC, hot swap redundant
- 1400 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
- 1100 WTitanium 100-240 VAC or 240 HVDC, hot swap redundant
- 1100 W LVDC -48 - -60 VDC, hot swap redundant
- 800 W Platinum 100-240 VAC or 240 HVDC, hot swap redundant
- 700 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant
|
| Cooling Options |
Air cooling
- Optional Direct Liquid Cooling (DLC)
Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate
|
| Fans |
- Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans
- Up to 6 hot plug fans
|
| Dimensions |
- Height – 86.8 mm (3.41 inches)
- Width – 482 mm (18.97 inches)
- Depth – 772.13 mm (30.39 inches) with bezel, 758.29 mm (29.85 inches) without bezel
|
| Bezel |
Optional LCD bezel or security bezel |
| Open Manage Integrations |
- BMC Truesight
- Microsoft System Center
- OpenManage Integration with ServiceNow
- Red Hat Ansible Modules
- Terraform Providers
- VMware vCenter and vRealize Operations Manager
|
| Security |
- Cryptographically signed firmware
- Data at Rest Encryption (SEDs with local or external key mgmt)
- Secure Boot
- Secure Erase
- Secured Component Verification (Hardware integrity check)
- Silicon Root of Trust
- System Lockdown (requires iDRAC9 Enterprise or Datacenter)
- TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
|
| Embedded NIC |
2 x 1 GbE LOM card (optional) |
| Network options |
1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system. |
| GPU Options |
Up to 2 x 350 W DW and 6 x 75 W SW |
| Warranty |
3 years |

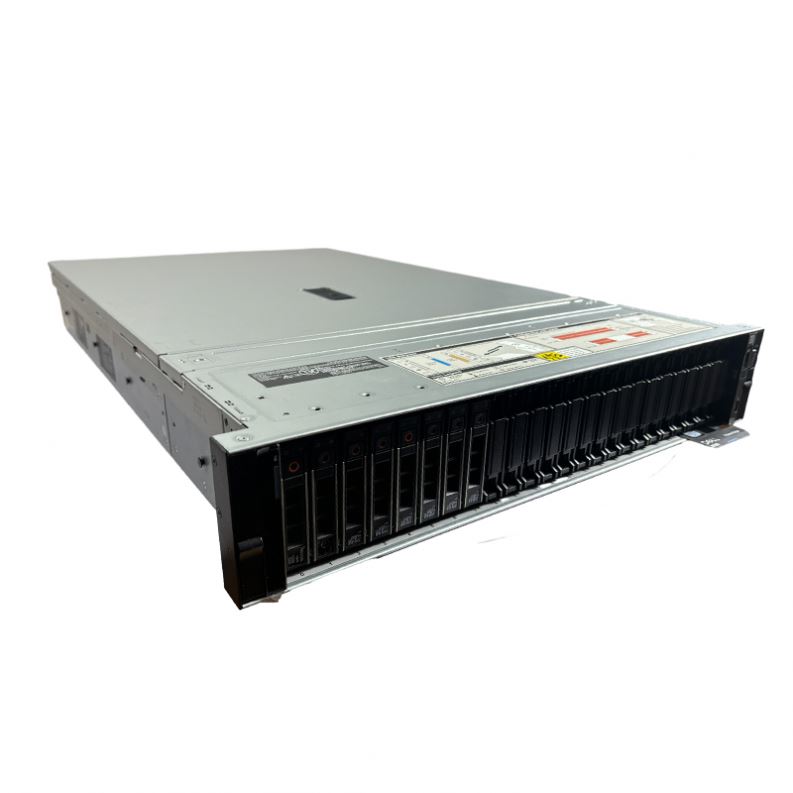

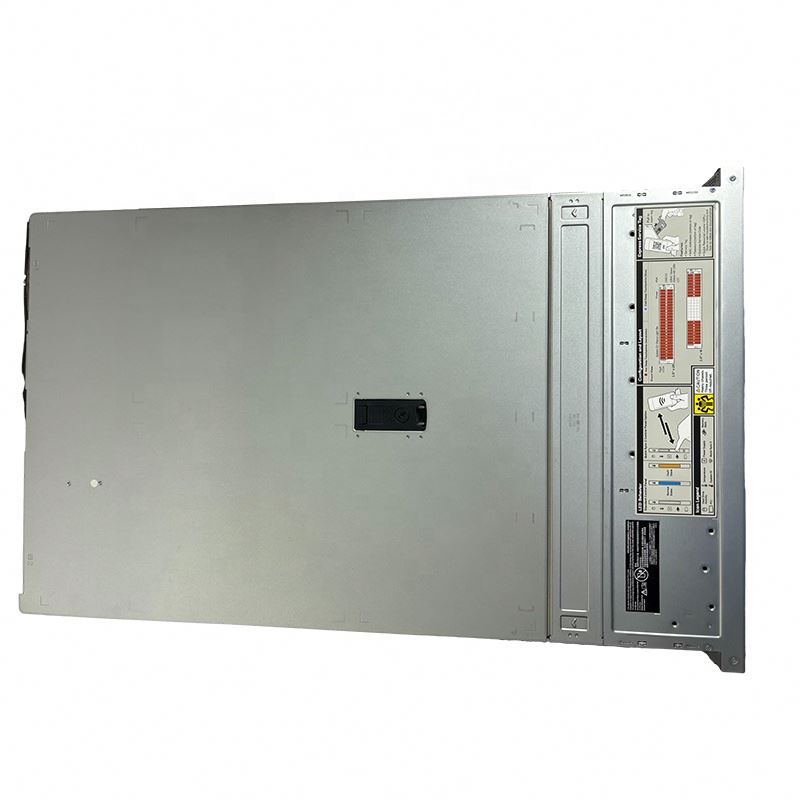

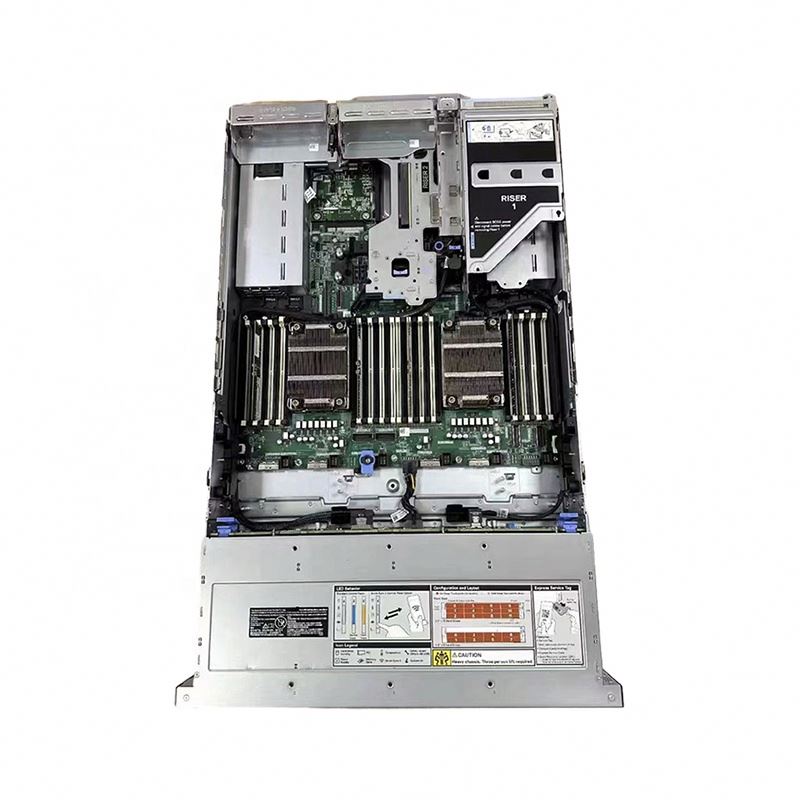

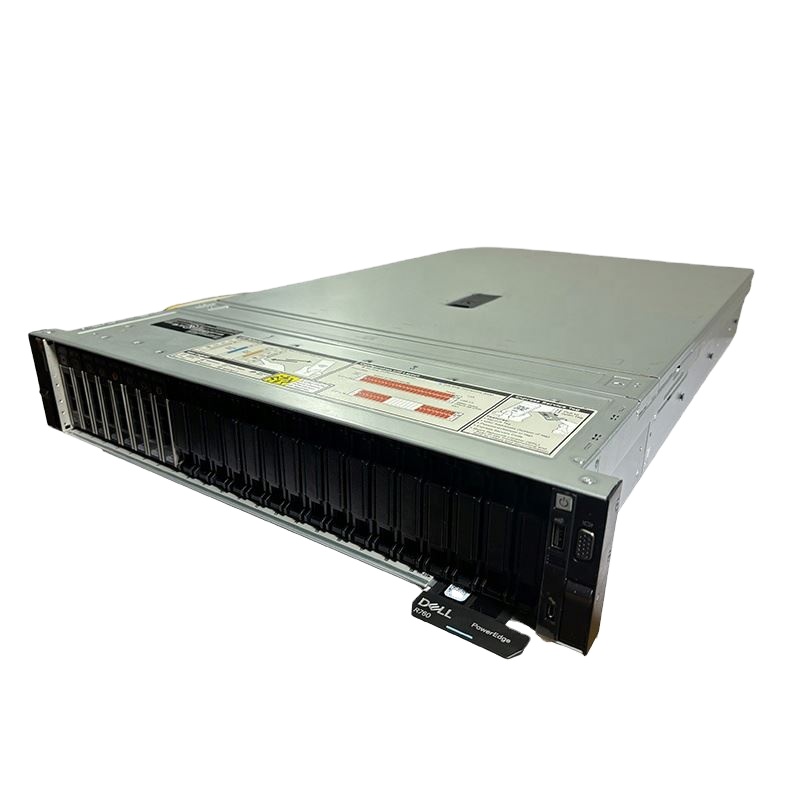

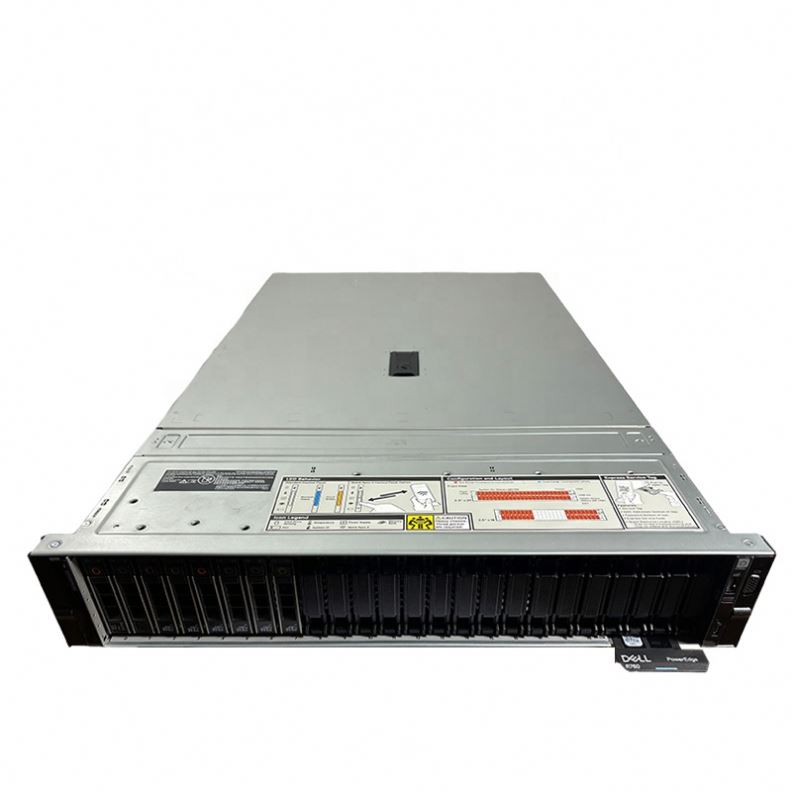

Dell PowerEdge R760 Rack Server
Provides performance and versatility as needed to address your most demanding applications.
The new Dell PowerEdge R760 is a 2U, two-socket rack server. Gain the performance you need with this full-featured enterprise server, designed to optimize even the most demanding workloads like Artificial Intelligence and Machine Learning.
