DELL PowerEdge R760XD2 2U Rack Server Dual Socket High Performance Storage Solution for Global B2B Buyers

Product Parameters

Server Model	Dell EMC PowerEdge R760XD2
Features	Technical Specifications
Processor	Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel QuickAssist Technology
RAM	Up to 16 DDR5 RDIMMs (up to 1TB supported) NVDIMM No DIMM Speed: up to 4800 MT/S
Storage controllers	• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HW RAID 2 x M.2 NVMe SSDs or USB • External HBA (non-RAID): HBA355e • Software RAID: S160

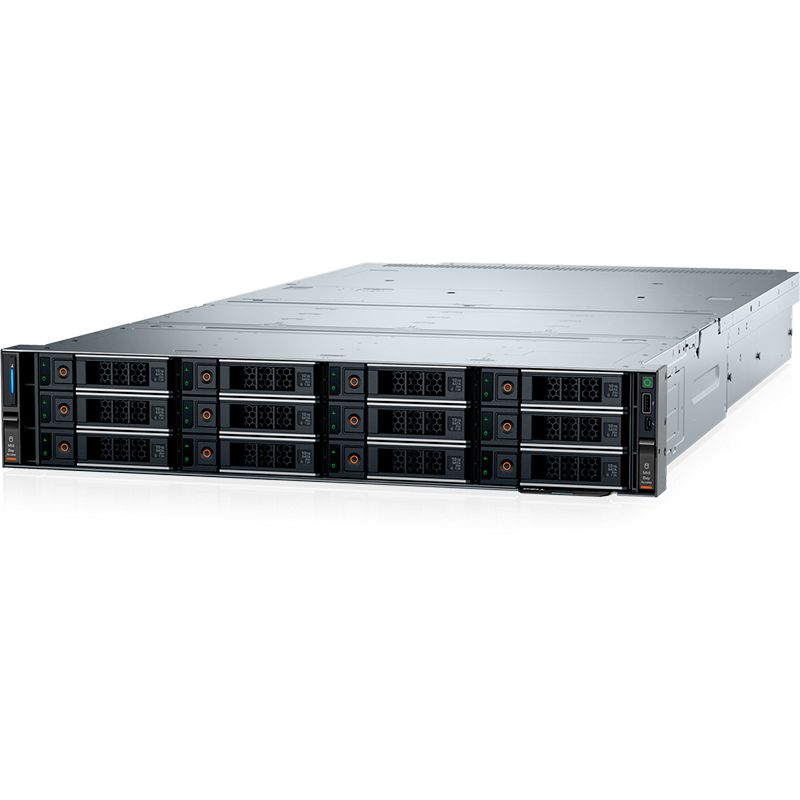

Drive Bays	Front bays: • Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB • Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB • Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB Rear bays: • Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB • Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Power supplies	• 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant • 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant • 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant • 1100 W LVDC -48 — -60 VDC, hot swap redundant • 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant • 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
Size	• Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 772.13 mm (30.39 inches) with bezel, 758.29 mm (29.85 inches) without bezel
Fans	• Standard (STD) fans / High performance Silver (HPR) fans / High performance Gold (VHP) fans • Up to 6 hot plug fans
Outline specification	2U rack server
Embedded management	iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module
Embedded NIC	2 x 1 GbE LOM
GPU options	Up to 2 x 350 W DW and 6 x 75 W SW

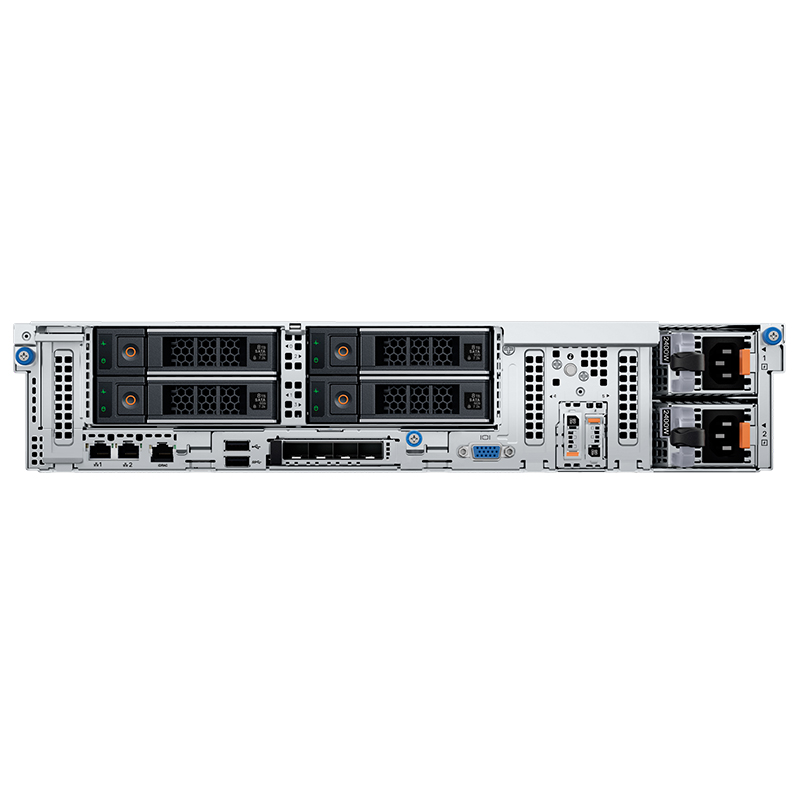

Port	Front Ports: • 1 x iDRAC Direct (Micro-AB USB) port • 1 x USB 2.0 • 1 x VGA Rear Ports: • 1 x Dedicated iDRAC Ethernet port • 1 x USB 2.0 • 1 x USB 3.0 • 1 x VGA • 1 x Serial (optional) • 1 x VGA (optional for Direct Liquid Cooling configuration)
PCIe	Up to eight PCIe slots: • Slot 1: 1 x8 Gen5 or 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length • Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length • Slot 3: 1 x16 Gen4 Low profile, Half length • Slot 4: 1 x8 Gen4 Full height, Half length • Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length • Slot 6: 1 x16 Gen4 Low profile, Half length • Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length • Slot 7 SNAPI: 1 x16 Gen5 Full height, Half length • Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length
Operating system and hypervisor	Canonical Ubuntu Server LTS • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi For specifications and interoperability details, see Dell OS support.
Warranty	3 years

Products Description

Dell PowerEdge R760xd2

Meet your growing unstructured data needs with object storage technology designed to be easily configurable, serviceable, and scalable. This 2U, 2 socket server is ideal for file and object storage, video capture/retrieval, and content delivery networks.

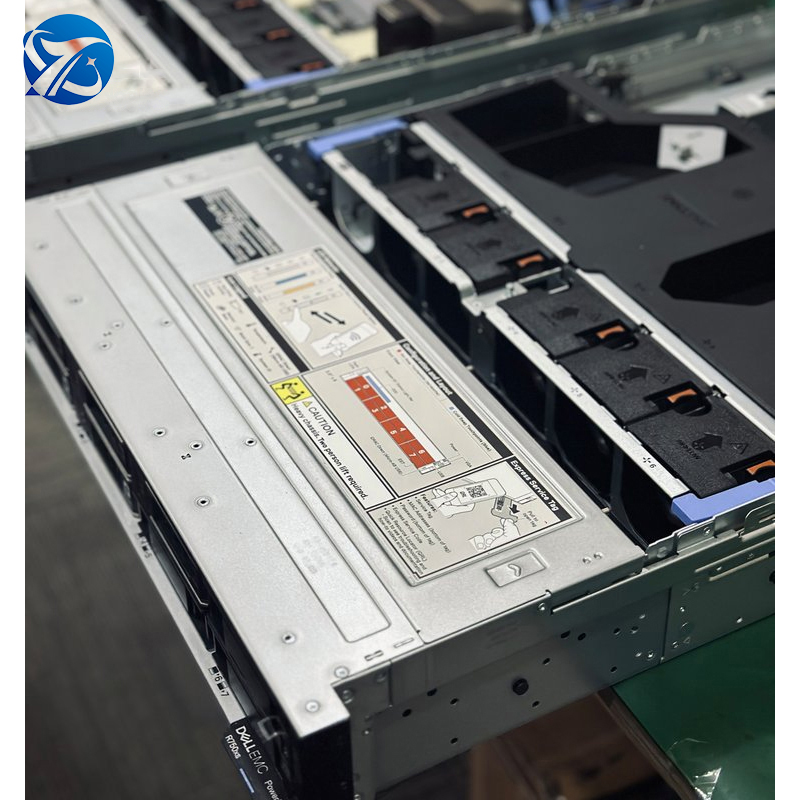

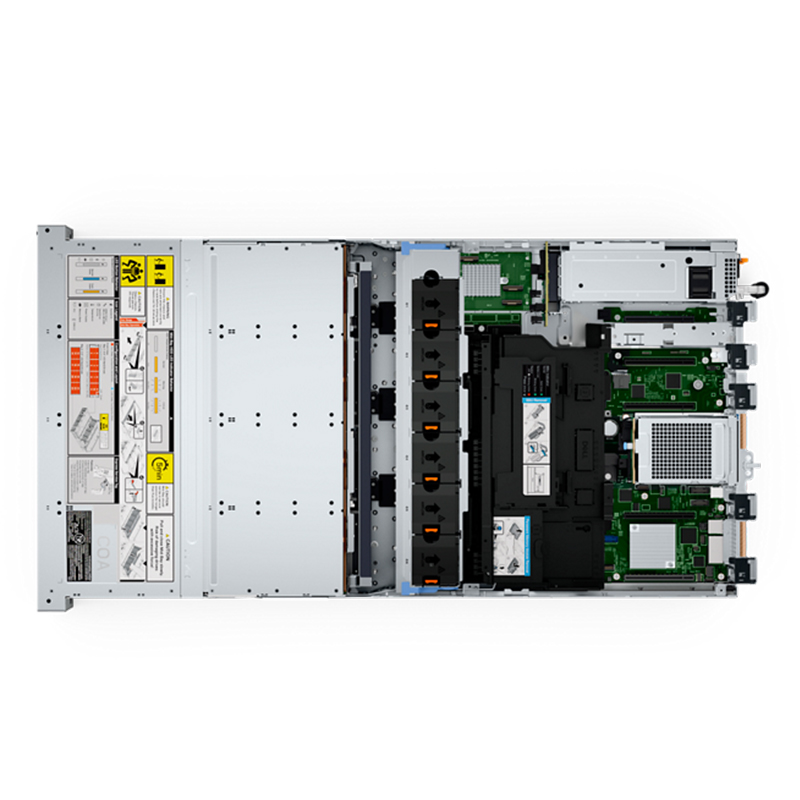

Product Display

Application Scenario

Company Profile

Global Infrastructure Services

As a leading integrated IT solutions provider, we combine cutting-edge in-house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end-to-end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top-tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation. As authorized partners for Huawei, xFusion, Dell, HPE, and Lenovo, we provide:

• Computing servers
• Network storage
• Network switches
• CPU, RAM, Hard Drives, and other system accessories

Exhibition

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Frequently Asked Questions (FAQ)

Q1: When can I get the quotation?

We usually quote within 24 hours after receiving your inquiry. If you are in a hurry, please inform us by email or telephone. We will give priority to your inquiry.

Q2: Why should I choose your hardware products?

High quality and strong market reputation are our top priorities. Whole machine systems feature a 3-year replacement warranty, supported by a comprehensive supply chain to efficiently manage after-sales solutions. All memory upgrades use original brand chips, strictly tested before delivery.

Q3: What payment methods do you accept?

We accept secure payment structures including online credit card payments, direct bank transfers (T/T), Alipay, and other major payment standard gateways to eliminate transaction concerns.

Q4: What is the minimum order quantity for an OEM project?

Different hardware items carry varying MOQ configurations. Let us know your exact requirements and we will do our best to meet your targeted system needs. Small or testing orders are also welcomed.

Q5: How do your prices compare to the local market and verify product quality?

We specialize in enterprise network servers and storage systems for many years. We place high importance on premium components because only stable quality sustains long-term business. While external server chassis layouts may appear identical, internal architectures, processor categories, and memory levels impact overall pricing and reliability.

Q6: What quality certifications and audits do your operations pass?

Our manufacturing resources and systems regularly undergo independent annual evaluations, including SGS verification and third-party commercial platform audits, ensuring international compliance standards.
